2kw wind&solar hybrid controller for hybrid system 48v/96v/120v z-2000w-01 manufacturer from China Shenzhen Green Elec Technical Co., Ltd.

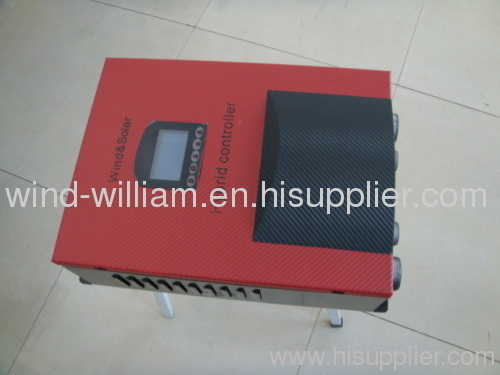

2kw wind&solar hybrid controller for hybrid system 48v/96v/120v

Payment Terms:	L/C,D/A,D/P
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: z-2000w-01

Production Capacity: 500

Delivery Date: within 5-7 days

Means of Transport: Ocean,Land,Air

Packing: carton box

Stand alone wind/solar hybrid power station
Stand alone domestic household wind/solar hybrid power system

Rated Wind Turbine Power	2kW
Rated Solar Power	600W
Rated Battery Voltage	48V	96V	120V	220V	240V
Wind Turbine Maximum Input Current	80A	40A	35A	25A	25A
Wind Turbine Maximum Input Power	4kW
Unload Voltage(factory default)	56V	112V	140V	252V	280V
Unload Current(factory default)	50A	25A
Control Mode	PWM
Charge Mode	High-Frequency Pulse
Operational Mode	English(Chinese)
Display Mode	LCD(3.7 inch blue)
Display Parameters	Wind Turbine Power, Wind Turbine Voltage, Wind Turbine Current,wind turbine speed ,PV Voltage, PV Charge Current, PV Power, Battery Voltage,temperature display real-time
Working Temperature &Humidity	-20~+50℃/35~85%RH(Without Condensation)
Temperature Compensation(optional)	4mV/℃/2V ,–35℃--+80℃, Precision:±1℃
Communication Mode(optional)	RS232\RS485\RJ45\GPRS. Etc
Protection Function	Solar reverse charge protection , Solar reverse connection protection, Battery over charge protection ,Battery reverse connection protection, Lightning protection, Wind turbine current limiting, wind turbine over-speed protection ,Wind turbine automatic brake and manual brake.
Connection type	Aviation connector
Size	400×300×130mm

Product Feather:

♠ The control unit (CPU) is the military level chip, more precisely control and stronger anti-jamming capability.

♠ Using aviation connector(magnesium alloy of high-strength),good conductivity,contact firmly more,faster and more convenient installation,has the stronger environmental adaptability(resistant to low/high temperature,corrosion-resistant,moisture-proof ,insulation good).

♠ Voltage limiting and current-limiting charge mode, ensures battery in the best charging status.

♠ Perfect protection function, thus the system has higher reliability.

♠ Check all operation parameters from 3.7 inch blue LCD .

♠ PWM stepless unload mode, which burn the excess power, making the battery charging in best status.

♠ Over-speed protection of wind turbine.

Application Areas:

♠ Stand alone wind/solar hybrid power station

♠ Stand alone domestic household wind/solar hybrid power system

♠ GSM base stations, expressway and other no-residential regions.

♠ Coastal islands, remote mountainous, border posts for regions shortage of or without electricity.

♠ Government demonstration projects, landscape lighting project, street light project etc.

Warm Prompts:

Customers, who will order the wind/solar hybrid street light controllers, need to provide the following information:

♠ Rated battery voltage

♠ Rated solar power

♠ Rated wind turbine power

♠ Whether the wind turbine is three phase AC output, single phase DC output or single phase AC output.
