Shenzhen Green Elec Technical Co., Ltd.
|

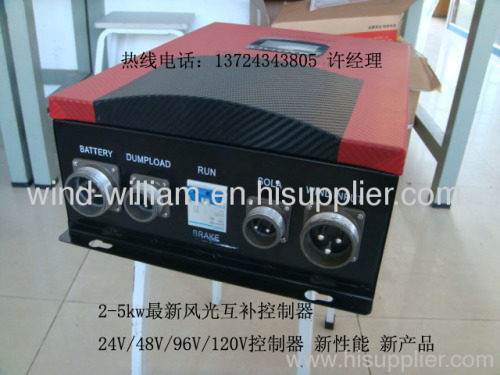

3kw/5kw wind&solar hybrid controller for off-grid system with dump load
| Payment Terms: | T/T,L/C,D/A,D/P,WU |
| Place of Origin: | Guangdong, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
2012 newest wind solar controller
Rated Wind Turbine Power | 3kW | |||||
Rated Solar Power | 900W | |||||
Rated Battery Voltage | 48V | 96V | 120V | 220V | 240V | |
Wind Turbine Maximum Input Current | 125A | 60A | 50A | 25A | 25A | |
Wind Turbine Maximum Input Power | 6kW | |||||
Unload Voltage(factory default) | 56V | 112V | 140V | 252V | 280V | |
Unload Current(factory default) | 60A | 30A | 25A | |||
Control Mode | PWM | |||||
Display Mode | LCD(3.7 inch blue) | |||||
Display Parameters | Wind Turbine Power, Wind Turbine Voltage, Wind Turbine Current,wind turbine speed ,PV Voltage, PV Charge Current, PV Power, Battery Voltage,temperature display real-time | |||||
Working Temperature &Humidity | -20~+50℃/35~85%RH(Without Condensation) | |||||
Temperature Compensation(optional) | 4mV/℃/2V ,–35℃--+80℃, Precision:±1℃ | |||||
Communication Mode(optional) | RS232\RS485\RJ45\GPRS. Etc | |||||
Protection Function | Solar reverse charge protection , Solar reverse connection protection, Battery over charge protection ,Battery reverse connection protection, Lightning protection, Wind turbine current limiting, wind turbine over-speed protection ,Wind turbine automatic brake and manual brake. | |||||
Connection type | Aviation connector | |||||
Size | 400×300×130mm | |||||
Application Areas:
♠ Stand alone wind/solar hybrid power station
♠ Stand alone domestic household wind/solar hybrid power system
♠ GSM base stations, expressway and other no-residential regions.
♠ Coastal islands, remote mountainous, border posts for regions shortage of or without electricity.
♠ Government demonstration projects, landscape lighting project, street light project etc.
Warm Prompts:
Customers, who will order the wind/solar hybrid street light controllers, need to provide the following information:
♠ Rated battery voltage
♠ Rated solar power
♠ Rated wind turbine power
♠ Whether the wind turbine is three phase AC output, single phase DC output or single phase AC output.
